VIVITEK BX565 DLP Projector 4000LU 3D , XGA 1024 x 768

NPR 58,000.00NPR 69,900.00 (-17%)

In stock

  • High 4,000 ANSI lumens of brightness for projection even in bright meeting rooms
  • Great 15000:1 contrast ratio ensuring clear presentations and sharp text.
  • Native XGA (1024 x 768) resolution up to maximum WUXGA (1,920 x1,200)
  • DLP® and BrilliantColor™ technologies for distinct and vibrant images
  • Low cost of ownership and maintenance with an energy efficient lamp for up to 10,000 hours (Dynamic Eco. Mode) of usage
  • 6 segment (RGBYCW) color wheel for improved and vivid color reproduction
  • 3D Ready via DLP® Link™ and HDMI v.1.4
  • Audio ready with 2 watt audio speaker and audio-in/out ports
  • Quiet operation with low 29dB (Eco mode) acoustic noise
  • Top sided lamp cover for simple lamp removal and insertion
  • Intuitive multiple language OSD (On-screen Display) menu
  • Environmentally friendly with less than 0.5W of power in standby mode
  • Portable and lightweight at only 2.6kg (5.7lbs)
SKU: Vivitek BX565 Category:

Value-oriented XGA projector with a brilliant image, long-life lamp and audio ready

The BX565 is XGA (1024 x 768) native resolution projector featuring DLP® and BrilliantColor™ technologies to display distinct, vibrant images in a widescreen format. The Vivitek BX565 features numerous connectivity options including HDMI v1.4, a brightness level of 4000 ANSI Lumens, and a high 30000:1 contrast ratio. With Direct-3D capabilities, the BX565 is more than capable of handling media applications available now and in the future. The Dynamic Eco Mode saves energy consumption and increases lamp life up to 10,000 hours.

VIVITEK D912HD front 011 m

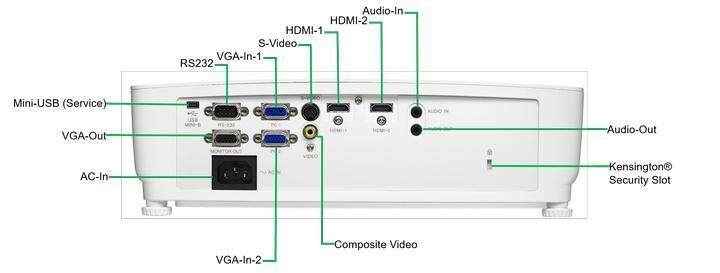

Vivitek D912HD IO Ports

Key features

Native Resolution XGA (1024 x 768)
Brightness 4,000 Lumens
Contrast Ratio 15000:1
Max. Supported Resolution WUXGA (1920 x1200) @60Hz
Native Aspect Ratio 4:3
Lamp Life and Type 5,000 / 7,000 / 10,000 Hours (Normal / Eco. / Dynamic Eco. Mode), 210W
Display Type Single Chip 0.55″ DLP Technology by TI
Chip Size 0.55” DMD
Throw Ratio 1.94 – 2.32
Image Size (Diagonal) 40″ – 240″
Projection Distance 1.6 – 10.1 m
Projection Lens F = 2.46 – 2.66, f = 21.8 – 25.6 mm
Zoom Ratio 1.2x
Offset (Based on Full Image Height) 104%
Keystone Correction Vertical: +/-40°
Speakers 2W
I/O Connection Ports HDMI v1.4b (x2), Composite Video, S-Video, VGA-In (x2), Audio-In (Mini-Jack), VGA-Out, Audio-Out (Mini-Jack), RS232, USB (Service)
Dimensions (W x D x H) 332 x 243 x 107 mm
Weight 2.6 kg
Noise Level 31dB / 28dB (Normal / Eco. Mode)
Power Supply: AC 100-240V, 50/60Hz Consumption: 203W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video) Yes
Computer Compatibility VGA (640 x 480) to WUXGA_RB(1920 x 1200)
Video Compatibility NTSC, PAL, SECAM / 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Standard Accessories AC Power Cord, VGA Cable, Remote Control, Documentation Kit
